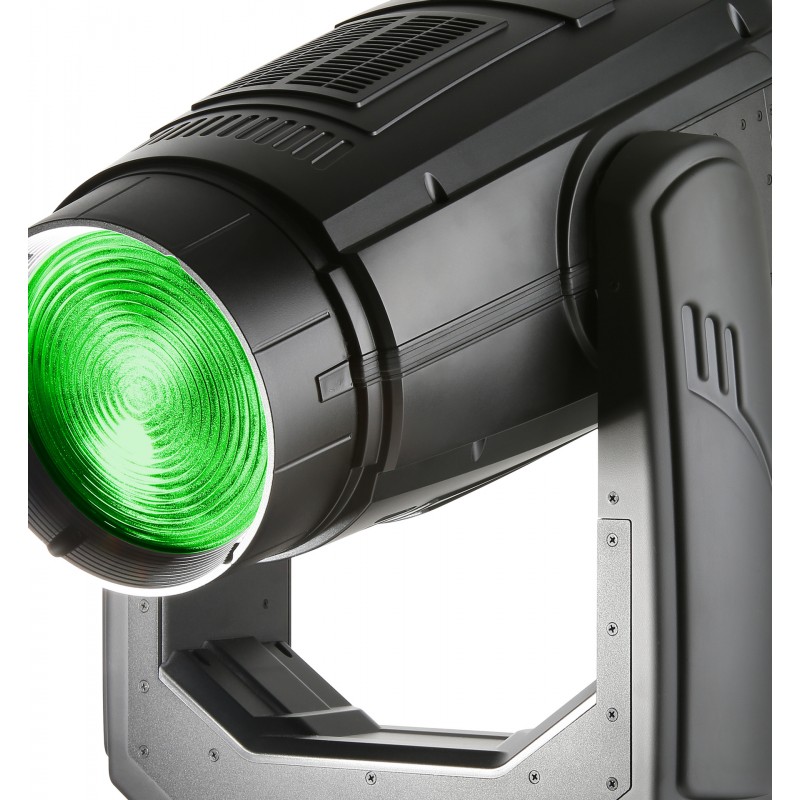

Moving Head Robe BMFL WASH XF

Detalii

Moving Head Robe BMFL WASH XF

Unul dintre moving headurile de top ideal pentru orice aplicatie pretentioasa.

SURSA

• 1.700 W
• Sursa lumina: Lampa haloida cu arc scurt
• Baza: PGJX28
• Model: OSRAM Lok-it! HTI 1700/PS
• Functionare: 750 h @ 1.700 W / 1.500 W / Quiet mode
• CRI: CRI 92+
• Temperatura: 6.000K
• Control: Automatic si remote on/off

SISTEM OPTIC

• Optica Robe
• Zoom Optic, ratio 12:1
• Raza Zoom: 4,5° – 55°
• Diametru lentila iesire: 200 mm
• Reflector sticla pentru maximizarea eficientei
• Optica de cea mai buna calitate
• Putere Lumen
• 38.000 lm @ 1.700 W
• 32.680 lm @ 1.500 W
• 27.630 lm @ 1.200 W (Quiet mode)
• Light output: 125.000 lx @ 5 m, 1250 lx @ 50 m

EFECTE

• Cyan: 0–100 %
• Magenta: 0–100 %
• Yellow: 0–100 %
• CTO Variabil: 2.700–6.000 K
• Colour Wheel 1: 6 culori fixe dicroice: deep red, deep blue, orange, green, magenta, congo blue + white
• Colour Wheel 2: 6 “SLOT&LOCK” culori dicroice : pink, lavender, laser green, 9000 K CTB
• Barndoor interne: Control individual in 4 pozii a obloanelor, +/- 90° rotatie modul
• Frost: interschimbabil – light, medium (standard), heavy
• Zoom motorizat
• Corectie a culorii a marginilor
• Shutter: Sistem dual separat lamele, strobe pana la 10 Hz, full black out
• Dimmer: sistem optimizat dual cu lamele

CONTROL SI PROGRAMARE

• Setare si control: Sistem ROBE 2 (RNS2)
• Ecran Touch: QVGA Robe cu baterie de rezerva, senzor gravitatie pentru pozitionare auto a ecranului, log memorie RTC,
• Operare stand-alone  3 programe editabile (each up to 100 steps), Auto-diagnoza
• Protocoale: USITT DMX-512, RDM, Art-Net, MA Net, MA Net2, sACN
• Tehnologie CRMX™ Wireless  Lumen Radio
• Moduri Protocol
• Moduri BMFL™ Wash: 2 DMX
• Moduri BMFL™ Wash XF: 2 DMX
• Control canale
• BMFL™ Wash: 25, 21
• BMFL™ Wash XF: 34, 30
• Pan/Tilt : rezolutie 16 biti
• CMY & CTO: 8 biti
• Pozitionare roare culoare: 8 or 16 biti
• Rotatie si miscare barndoor interne: 8 biti
• Scrim: 8 biti
• Frost: 8 biti
• Zoom: 8 biti
• Corectare de culoare a marginii: 8 biti
• Dimmer: 8 or 16 biti

MISCARE

• Miscare Pan: 540°
• Miscare Tilt: 270°
• Control miscare: Standard & Speed
• Vireza controlabila a miscarii Pan/Tilt
• EMS™: Sistem Electronic Motion Stabilizer pentru Pan & Tilt
• Corectare Automata Pan/Tilt

CONECTARE

• Voltaj intrare: 200–240 V, 50/60 Hz
• Consum: 2.000 W at 230 V / 50 Hz
• Conector: Neutrik powerCON
• DMX & RDM data in/out: 3-pini & 5-pini XLR
• Intrare internet RJ45

DIMENSIUNI:

• Inaltime: 826 mm, indreptat in sus
• Inaltime: 483 mm
• Inaltime: 335 mm
• Greutate: 35 kg

MONTARE/FIXARE

• Pozitii fixare: 0°, 32°, 90°
• Pozitii de operare univesale
• Puncte: 5 perechi 1/4
• 2x Omega adaptor cu 1/4-turn
• Safety cable attachment point
• Pan si Tilt transport

INCLUDE

• User Manual
• Adaptor Omega CL-regular 2 pcs
• Cablu alimentare cu power con
