Monitor Scena dB Technologies VIO W15T

Detalii

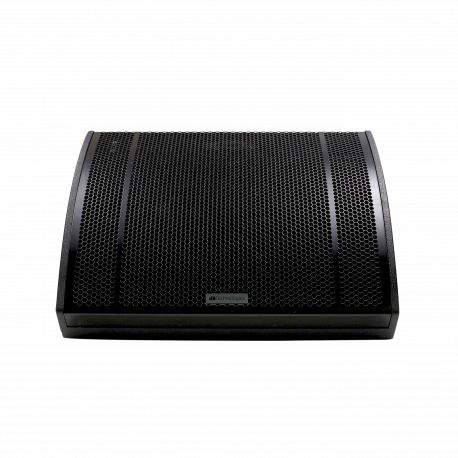

Monitor Scena dB Technologies VIO W15T

• Monitor de scena activ coaxial in doua cai
• 1600W RMS Class-D
• Goarna rotativa
• Full range smps cu pfc
• DSP performant cu linear phase fir filters
• Slot network modular si carduri digitale expansiune (rdnet card instalat)
• Nfc™ + led fata
• System test pentru diagnosticare stare sistem
• Design exclusiv al grilei din fata-spre spate

Date tehnice:

• Monitor de scena activ coaxial in doua cai
• Banda frecvente - (10 dB) 49 - 17,500 Hz
• Frecventa raspuns - (6 dB) 55 - 16,000 Hz
• Max SPL 137.5 dB
• HF1 x 1.4" - 3" v.c. Neodim
• LF1 x 15" - 3" v.c. Neodim
• Dispersie H80°, V60°
• Putere 1600 W RMS
• Amplificare Clasa D Digipro® G4
• Racire convectie+ ventilatie
• SMPS with PFC (100V~-240V~, 50-60Hz)
• Procesor DSP 32 biti
• Convertor AD/DA24 bit/96 kHz
• Limitator: Dual Active Peak, RMS, temperatura
• Linear Phase FIR Filters
• Input: 1x XLR mama, 1 x USB (Data Service)
• Output: 1xXLR tata
• Card expansiune: RDNet Card (1x RJ45 IN 1x RJ45 Link)
• Dante Card [Optional]
• Alimentare:
• 1x PowerCON TRUE1 In
• 1xPowerCON TRUE1 Out
• Control:
• 1x switch Flat - service/user
• 1x switch System test
• 1x led ON
• 1x led STATUS
• 1x led SIGNAL
• 1x led LIMITER
• 1x LED TEST
• 1x frontal ID led
• 380V SMPS
• System Test (diagnostic difuzoare)
• Cabinet: Polyurea
• Manere: 1 + 2 laterale
• Latime: 650 mm
• Inaltime: 360 mm
• Adancime: 490 mm
• Greutate: 29 kg
